PostSubject: Home made lifting roof on a 110 Defender   Sat Dec 13, 2014 9:00 pm

Well I gave it some thought and the £6k for a german or french one is out of my league.  So after some deliberation I decided to build one myself. I didn't want to have the vehicle off the road whilst I built this, as I need to use it regularly, so it needed to be 'easy' and not involve taking the van apart. Some of these lifting roofs use the existing LR roof and raise it on a hinged plinth which is fitted between the old roof section and the van sides to allow the lifting/opening. However this means forming a curved piece for both above the windscreen and the shape of the back door, which is complicated and labour intensive (as well as needing to take the roof off.)



To get round these 'problems' I thought I'd use the existing roof as a base, working up out of the existing gutter to form the sides and back from 3mm alloy sat in the gutter, with a front piece bolted on, and put a hinged lid on it and then once its fitted, sealed and I'm satisfied it works, I can lift it up, get inside on top with the jigsaw and cut out as much of the 'old' roof as I want, retaining enough around the vehicle to bolt the new one on to. Various other mods across the vehicle width to support the bed platfrom in the roof area will help to retain structural integrity and I reckon the finished item will be stronger than original. A roof rack made of simple alloy flat bar welded to the top on its  edge with alloy tube across, will also help to make this even stronger (and I can carry my canoes on it).

I searched the alloy extrusion folks catalogues and found two sections that are perfect - an unequal z section which works for the 'base' giving a good sized upstand to prevent weather ingress, and onto which I can fasten the lower part of the fabric sides, and which also has enough 'width' to allow a gas strut to fit in between. Above that, the 'closing' section is L alloy, inverted, which has bags of overlap up into which the fabric can be fastened and allows sufficient space for the loose material to pull inside when the roof is lowered and closed.



To retain the front slope (windscreen angle) and give some wind shedding ability I've had the front section above the windscreen bent by my local alloy fabricators (who will do the difficult welding for me). This is because the stock extrusions are all right angles and wont work with the slope backwards.



Weight. A conventional roof tent is between 100 and 200 lbs, depending on make and size, and that's without a roof rack to support it. Add a rack which will be at least 50lbs and the overall weight on top is between 150 and 250lbs.

My existing roof rack weighs about 50lbs and the roof section I'll remove is probably another 20-30lbs. So I'm 'losing' about 70lbs or so.

The new lifting alloy roof will come in about 140lbs max with internal bits and bobs, so deducting the weight of the current roof rack and old roof thats being removed I'm only adding around 70lbs and at the very most 100lbs to the vehicle(and that is including roof rack). That's not anywhere near compromising vehicle stability.

Sides and alloy Z and L sections are 3mm and roof is 1.2mm sheet on 19x19x 1.6mm box subframe.

Height. Keeping it to less than 2.2m shipping container height. The new roof will end up only about 5 inches higher than the current rooftop (plus 2 inches for roof rack), so somewhere around 7 inches in total, but still less than a normal roof with roof rack (never mind adding a roof tent). There will be no sloping top on the roof above windscreen (like on the original roof) as it will be flat all the way through, so it looks a bit 'top-hatty' but I can live with that to have room for my feet when lying in bed!

Speaking of which: the length from windscreen top to back door is 9 feet. Deduct a bed length of 6' 6'' (fitted in two sections) and that leaves a 2' 6'' gap at rear end which gives anything up to 10 feet of standing head room with the roof up and allows me to climb up and get onto the bed, and I'm fitting a small sink on the passenger side and a cooker on the driver side. The bed base in the roof area will be in two sections with the front piece bolted firmly in place to the sides and braced to be a structural member, and the second section towards the rear will be lift-up and remove and during the day will 'nest' on top of the front section, and can be pulled to the rear and popped in place for sleeping. That two part method allows a good amount of standing room for about 6 feet from the back door when the bed base is 'nested' and will make moving about inside easier. Ladder access to bed will either be rungs built into kitchen sink base unit and cooker base unit opposite (so two bed access points) OR a small alloy ladder fixed externally for roof access which can be unclipped from the outside and pulled inside at night and used to climb up on either side as required.

Anyway some rough plans should accompany this, as well as pics. Plans not to scale, just for guidance. Although the extrusion code numbers are there in case you want to have a go.

3mm might seem overkill but when I added up the weight of using thinner stuff, but needing a stronger subframe to support it, and then the complexity of fabricating that, well.... 3mm sheet was an easy winner, cheaper and lighter.

So here you go - the driveway fabricated lifting roof. I did get a loan of a barn in the winter as the snow and ice buildup on my van roof was getting ridiculous and there is a limit to how far you can go outside and keep things dry and allow glue and mastic to set, never mind paint to dry!

What I started with - a stack of alloy I collected from the suppliers.



Then a template made from ply for the front.



Sides fitted to get front angles an overall lengths.



Rear end fitted to get width.

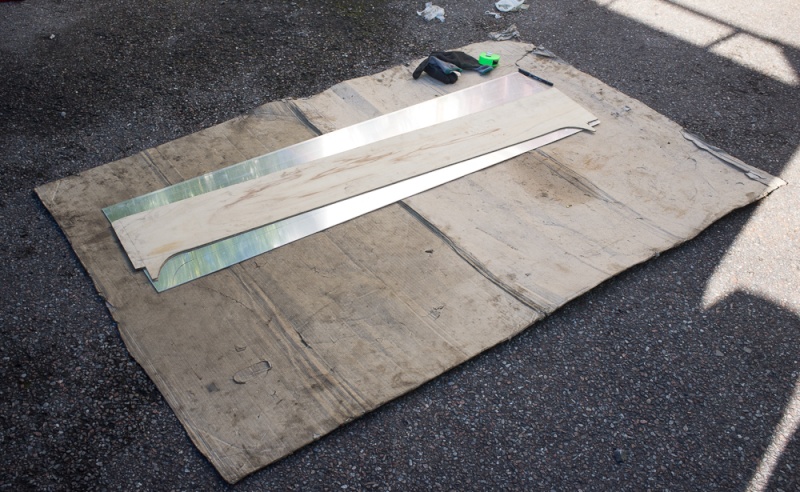

Important piece - the ply template for the front slope above windscreen and small upstand for hinge.



Alloy fabricator lads bend the front section to suit the ply template. 10 minutes work, by hand! Perfect first time!



Fitted beautifully!







Next step was welding the seams on the lower section.



Perfect job.





Brackets to hold new roof down to old roof fitted.





Last edited by Wunnten on Sun Dec 14, 2014 7:08 am; edited 1 time in total
Back to top Go down
Wunnten
Rookie
Rookie


Posts : 7
Join date : 2014-12-13

PostSubject: Re: Home made lifting roof on a 110 Defender   Sat Dec 13, 2014 9:22 pm

Then lifting top section was fabbed up to fit the lower bit.



Gaskets selected to suit and to establish tolerances needed (gaps).



Then top welded up with bracing below, and gap for roof hatch. Hatch is yacht deck hatch - stronger and cheaper than a 'proper' campervan hatch.





And hatch tried in for size.



Weather got manky and all sorts of stuff happened to my partner, only 42 yrs old & very fit  (long story involving a cardiac-arrest, life-support machines, brain injury and so on) but roof continued (eventually).



Insulation installed (Kingspan)



Back into garage - with only a few feet of work space and lifting lid part of roof needing to be vertical on its side in order to fit.



With the lid off the last thing I needed was snow, but we got it.



Weather improved and I got the ply lining and pine subframe fitted.







Got clips fitted to hold top down. All fitting marine grade stainless.



And hinge - stainless too. Gasket I found to seal hinge and 'wrap' around the ball to stop water ingress when driving.



Then painting the lower section.



At this point it was snow, ice, wind and horrible and I got a loan of some barn space to carry on the critical lifting and fitting the lid to lower section. Cutting out the old roof and all that stuff.
Back to top Go down
Mudplugging
Cleaner
Cleaner


Posts : 58
Join date : 2012-11-06
Age : 59
Location : Kent

PostSubject: Re: Home made lifting roof on a 110 Defender   Sat Dec 13, 2014 10:24 pm

nice job just wish I had the skill
Back to top Go down
Wunnten
Rookie
Rookie


Posts : 7
Join date : 2014-12-13

PostSubject: Re: Home made lifting roof on a 110 Defender   Sat Dec 13, 2014 10:33 pm

Into the barn. It was actually colder inside than it was outside. But it was at least dry. And with 18 feet of head room - enough to get the lid lifted on. Took 3 of us and it was still an awkward pig.

Fitted the sealing gasket first.





Cutting out the old roof was a final step! Basically lay a pine plank along each side and across the end and draw a line, then jigsaw right through and remove section.



I kept the whole over-cab area roof, cutting just behind the roof strengthening rib that is above the bulkhead, meaning the roof strength is not compromised.



Then on with fittings - hatch, gas struts to lift the roof, bed fittings etc.





The bit of roof I cut out, which has about 1" of closed cell foam insulation on it was used to make an insulated protective cover for a water tank I then fitted into the wing.







And inside - heavy duty sliders for fridge to pull, out across the width, but designed to be high enough to clear storage boxes I use strapped down to the rear floor.







Finally got it back out in the fresh air and could tackle interior fittings and fabric.



Crucial details - like can the railway track run around the roof for 5 year olds entertainment!



And his bed.





Fabric is NOT easy to get right. See drawings!







And finally this is the fitted thing. Fitting the fabric was the hardest part of the whole job - it slid off, moved, fell, ruckled up and generally was a pig to work with.





Solar panel fitted, mains hookup, inverter, various storage cupboards using slides to allow versatility, alloy roof rack with slide in removable bars etc. And then me and wee lad off for a jolly to see if ti worked . It did!



Still some work to do at this point - roof supports (internal) not yet fitted - just two bits of wood.









And once wee man was in bed 'upstairs' I could sit downstairs in comfort and have a read and a cup of tea!





It was started in July 2013, and usable (but not totally completed) in July this year (2014). I should have it completed by this coming summer (2015). Material costs were about £1400 - thats all the alloy sheet, extrusions, stainless fittings, gas struts, slides, led lights etc but not fridge and solar stuff.

I still have a good few things to do yet, work in progress. But as it is it's usable. I reckon I've saved £8-£10K at least by doing it myself.


Last edited by Wunnten on Sun Dec 14, 2014 5:19 am; edited 1 time in total
Back to top Go down
Wunnten
Rookie
Rookie


Posts : 7
Join date : 2014-12-13

PostSubject: Re: Home made lifting roof on a 110 Defender   Sat Dec 13, 2014 10:34 pm

Mudplugging wrote:
nice job just wish I had the skill

Trial and error, a sharp pencil and measure twice! Ask advice online and locally and you'll be surprised how far you can go!
Back to top Go down
wideformat4x4
Terrain Adept
Terrain Adept
avatar

Posts : 819
Join date : 2011-01-20
Age : 59
Location : Marcham, Oxfordshire

PostSubject: Re: Home made lifting roof on a 110 Defender   Sun Dec 14, 2014 12:29 am

Fantastic job makes mine look a little puny

_________________
Seek not excess, God hateth he who roams !


Defender 300TDI - 110

www.4x4eurotours.com
Back to top Go down
Tom Mc
Founder
Founder
avatar

Posts : 3766
Join date : 2010-12-10
Location : Sant Boi de Lluçanès, Catalunya, Spain

PostSubject: Re: Home made lifting roof on a 110 Defender   Sun Dec 14, 2014 10:02 am

Wow, we've seen some extensive posts on this forum in the past, but your's takes the biscuit. NICE ONE!!! adore

Best of all? Has to be the railway track; genius! clapping2 clapping2 clapping2

_________________
Visit the free online resource - www.europe4x4mag.com
Back to top Go down
Wunnten
Rookie
Rookie


Posts : 7
Join date : 2014-12-13

PostSubject: Re: Home made lifting roof on a 110 Defender   Sun Dec 14, 2014 8:03 pm

Tom Mc wrote:
Wow, we've seen some extensive posts on this forum in the past, but your's takes the biscuit. NICE ONE!!! adore

Best of all? Has to be the railway track; genius! clapping2 clapping2 clapping2


Thanks Tom! It was a steep learning curve, all documented in detail and it's been written up elsewhere, if anyone wants the full build diary with problems, solutions, supplier details etc it is on Expedition Portal. It's another vehicle forum but needs registration (but no subscription) to view the images. The build diary spans a year and has over 40 pages and a hundred or more images of the complete process so worth a look if you're seriously interested.

I linked to it on a couple of other forums and got complaints that the registration requirement put them off so I'm flagging this up, up front, this time.

There's a comprehensive but less detailed diary of it on LR4X4 too. Very similar to the ExpedPortal one but with fewer images.

I'm happy to answer questions here though. I got a load of help from the communities in the two links above and there are certain aspects of the build that really benefited from the input of more experienced people.

SO moral is don't be afraid to ask - there's some really generous folks out there and I'm very grateful to all of them for their input and guidance.
Back to top Go down
Tom Mc
Founder
Founder
avatar

Posts : 3766
Join date : 2010-12-10
Location : Sant Boi de Lluçanès, Catalunya, Spain

PostSubject: Re: Home made lifting roof on a 110 Defender   Mon Dec 15, 2014 12:03 am

Also glad to see you drink quality larger!

Again, great info and thanks for posting it. clapping2
